J-PARC Extraction Septum Magnets
Middle Magnetic Field
Middle Magnetic field extraction magnet
Middle magnetic field Septum magnets contain four cores with coil of four turns. These are made of HIP materials and are water cooled. The dimension of each core is 280mm W x 840mm L x 234mm H.

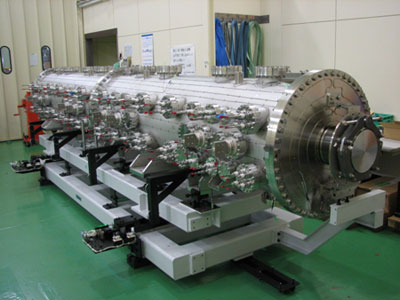

A pair of cores are mounted into each chamber of dimension 660mm diameter x 4000mm L. Large diameter flanges are sealed using helicoflexes.

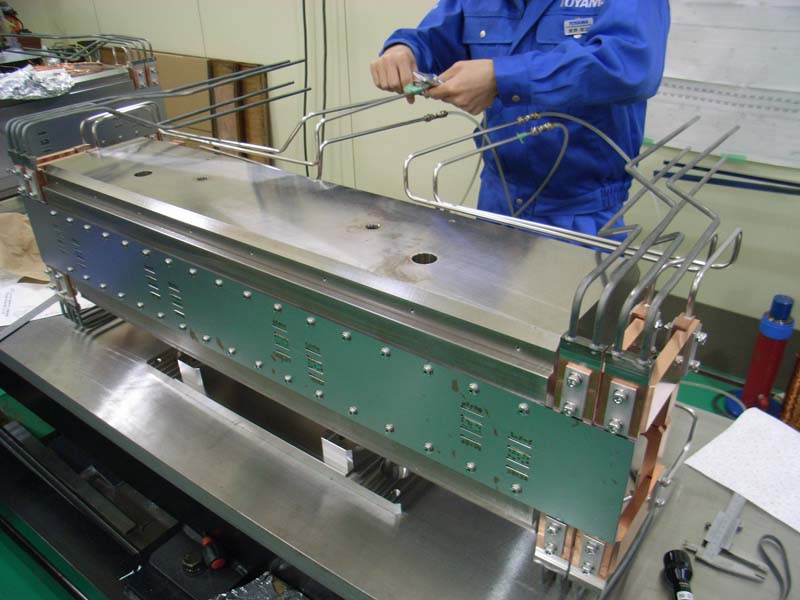

Core with four turns coil
Core with four turns coil

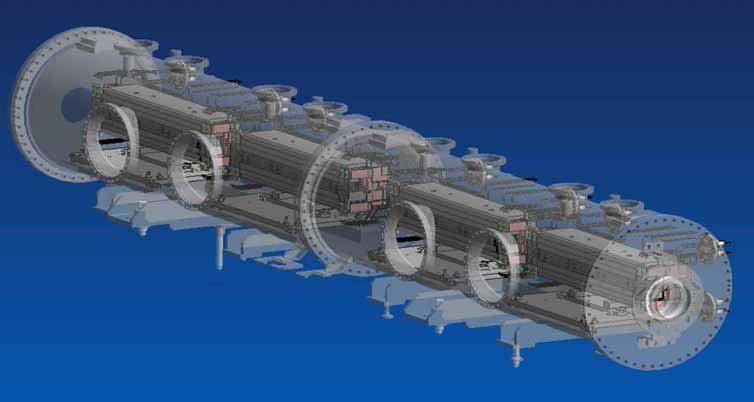

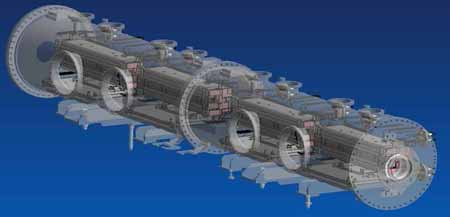

3D Model of middle septum magnet
Click here to open a poster of Toyama's components at the J-PARC facility
