Radio Frequency Quadrupole

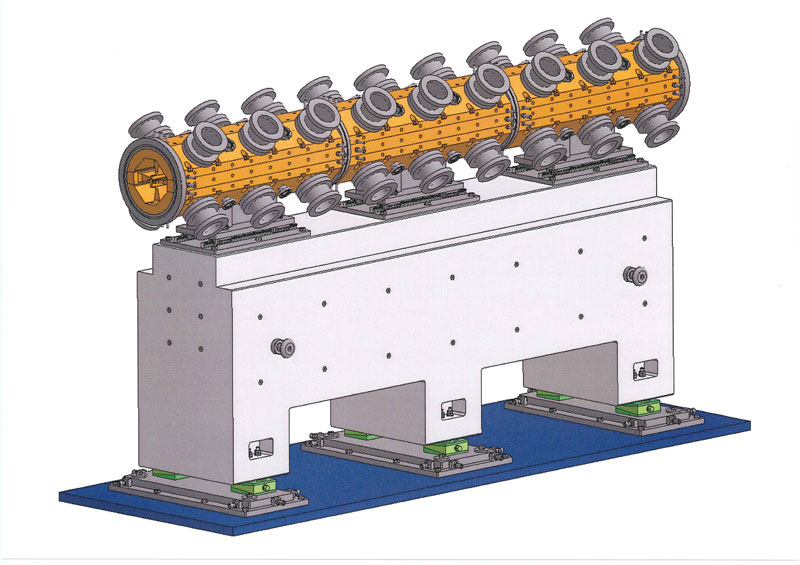

Diagram of Expected Total Radio Frequency Quadrupole Assembly
Complete Radio Frequency Quadrupole Assembly
High specifications and good RF contact characteristics realised with the best combination of precise NC machining, surface treatment, electric beam welding and vacuum brazing.

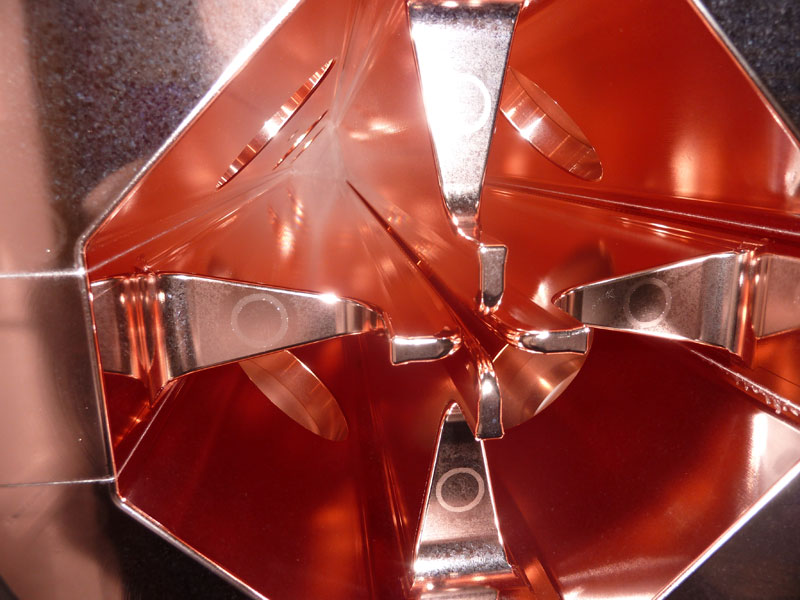

Upstream of RFQ Modulation
Beautiful configuration of the vane head

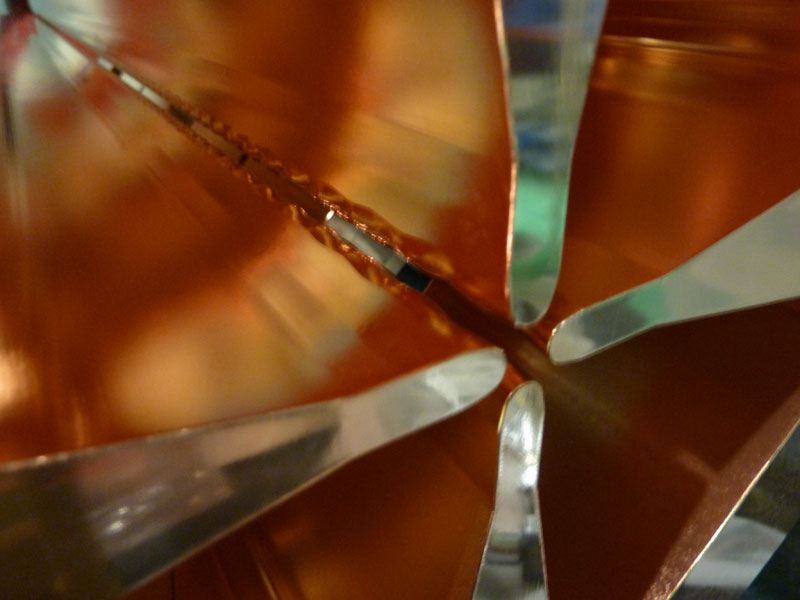

Downstream of RFQ Modulation
