Variable Line Spacing Plane Grating Monochromator VLSPGM
for BL-28 at KEK
Features | Specification | Design | Drawings | Photos | Control System | Delivery Record
M2 & G chamber from BL-28 at KEK
State of the art grating chamber to be applied to a variable included angle VLSPGM.
Features
- Both incoming and outgoing beam angles are horizantally fixed.
- Ultra-high resolution for the wide range of wavelength.
- High heat-load compatible by high-efficiency double tubing water cooling system.
- Direct angle reading with UHV-compatible precise rotary Heidenhain encoder RON905UHV with IK320.

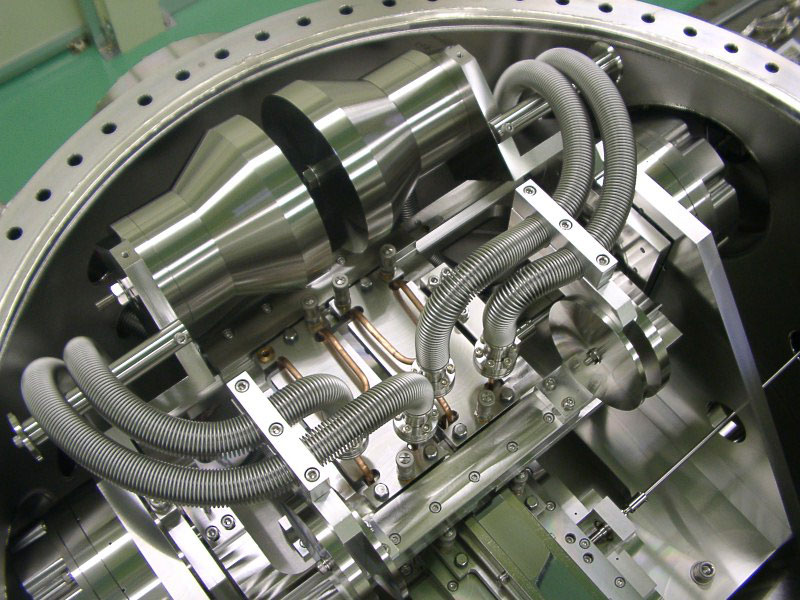

Internal machanisms of PGM
Click here to open a datasheet about the VLSPGM at BL-28 KEK
