KB Mirror Chamber

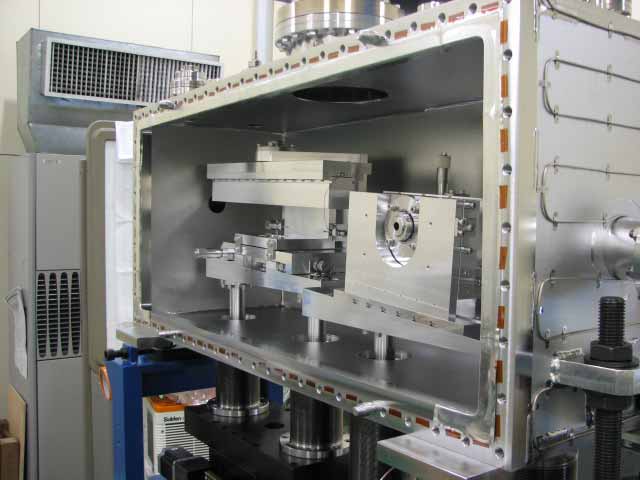

Internal view of the KB mirror chamber
Internal view of the KB mirror chamber
This Mirror Chamber is designed to hold a Kirkpatrick-Baez mirror pair for focusing the beam to small spot sizes. The mirrors are mounted one vertical and one horizontal to focus the beam in both axes.

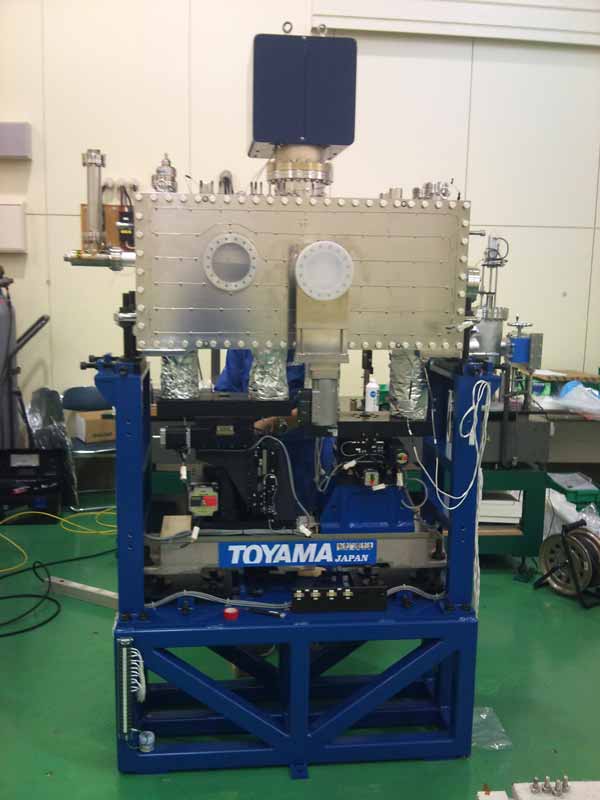

Front view of a KB Mirror Chamber

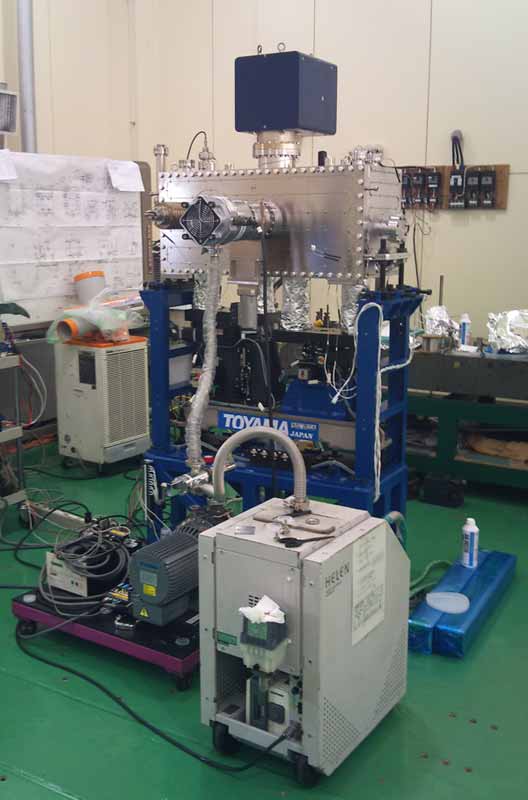

KB Mirror Chamber from the back
