J-PARC Extraction Septum Magnets
Low Magnetic Field
Low Magnetic field extraction magnet
Low magnetic field Septum magnets contain a single core with a coil of either one or two turns. These are "centipede" shaped coils with copper plate of 1.5mm thickness. The dimension of each core is 200mm W x 1500mm L x 218mm H. The cores are water cooled

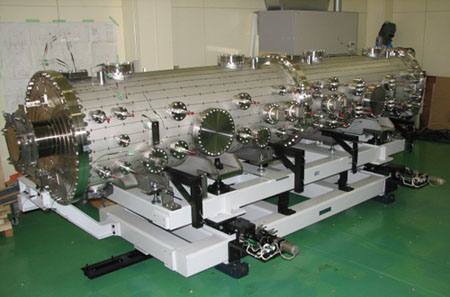

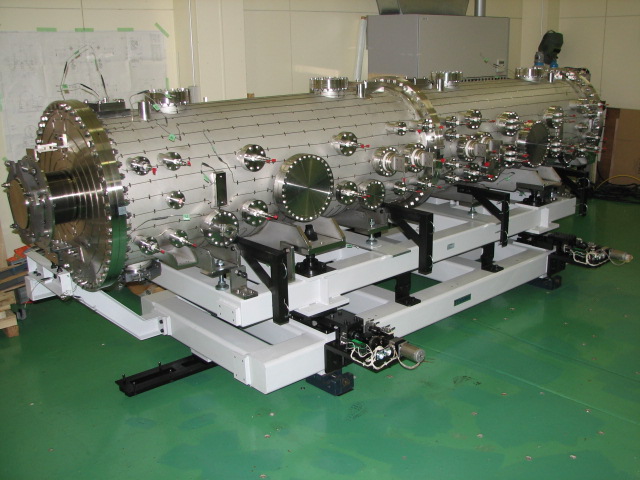

Cores are mounted into chambers of dimension 660mm diameter x 4000mm L. Large diameter flanges are sealed using helicoflexes.

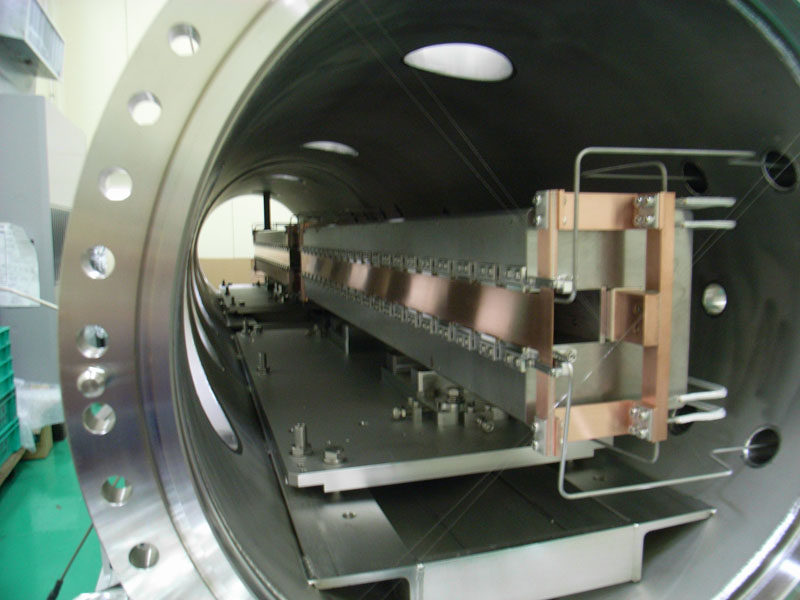

Core with one turn coil

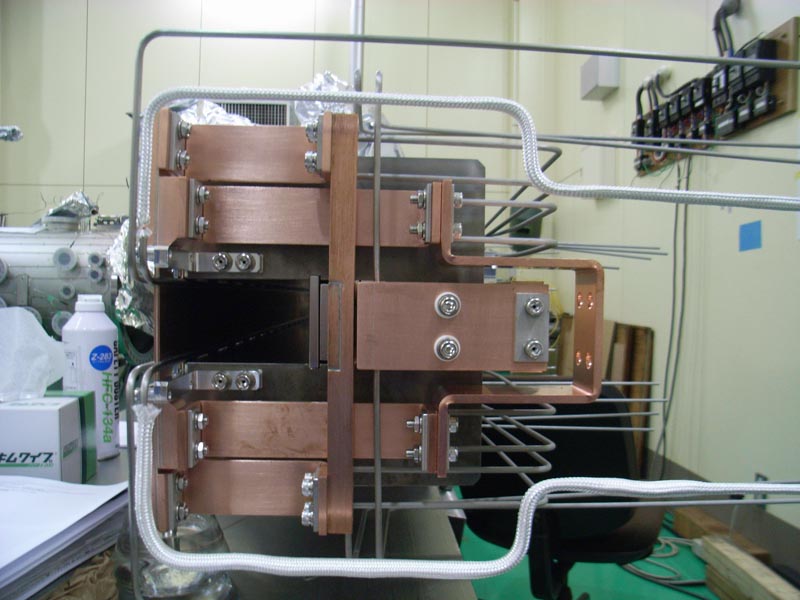

Core with two turns coil
