Ellipsometer
Features | Specification | Internal Mechanisms | Drawing | Measurement Modes | Accuracy | Data
Features

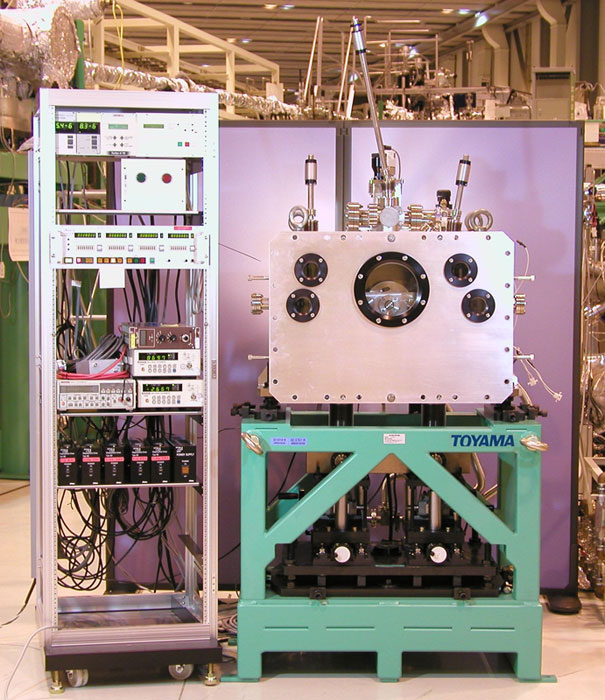

Ellipsometer system
Ellipsometer end station for polarisation analysis of soft x-ray synchrotron radiation.
- Usable for both reflection polariser and phase shifter (transmission polariser)
- 6 axes rotational mechanism
- Alignment friendly compact design
- Load locked - exchangeable polariser (analyser) in situ
- Detector - MCP (micro channel plate)
- Pinhole - suppression of fluctuating light axis on detector

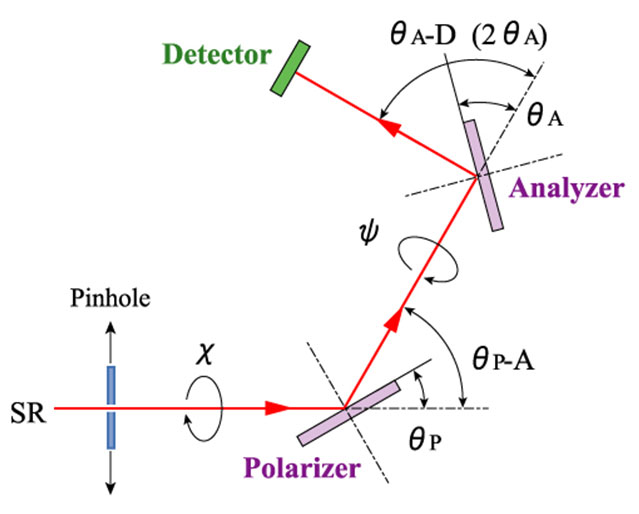

Ellipsometer schematic

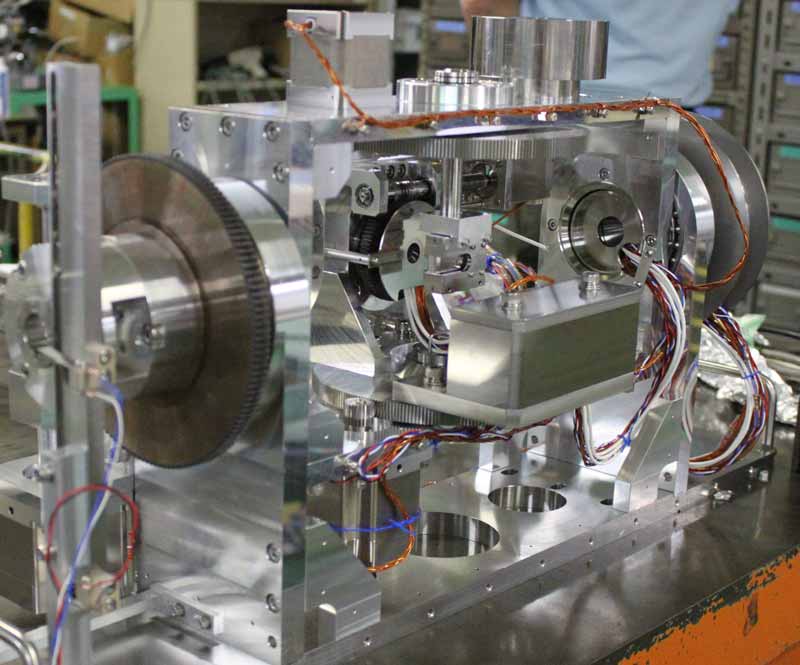

Ellipsometer internal mechanism
being built in the factory
