J-PARC Injection Septum Magnets
J-PARC Injection Septum Magnet
The J-Parc Injection Septum magnets are based on the silicon steel laminating technology cultivated in the KEK B-factory project. The magnet core is built from a laminated structure of non-directional silicon steel plates with a 0.35mm thickness.

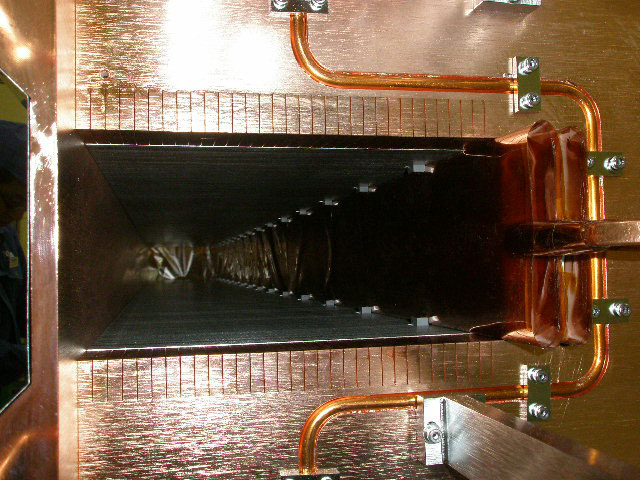

Centre of magnet core

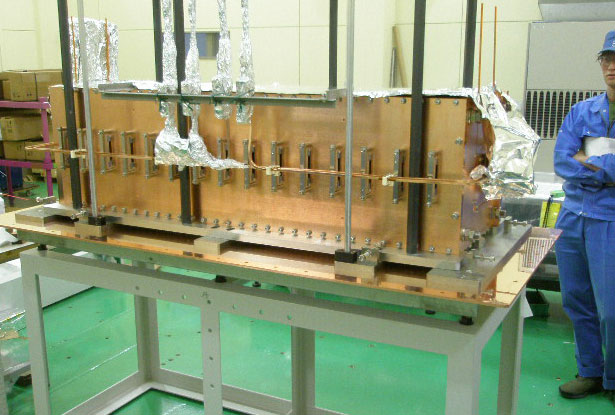

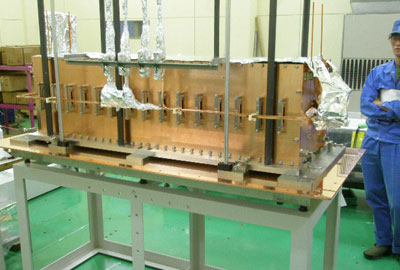

Septum Magnet Core assembly

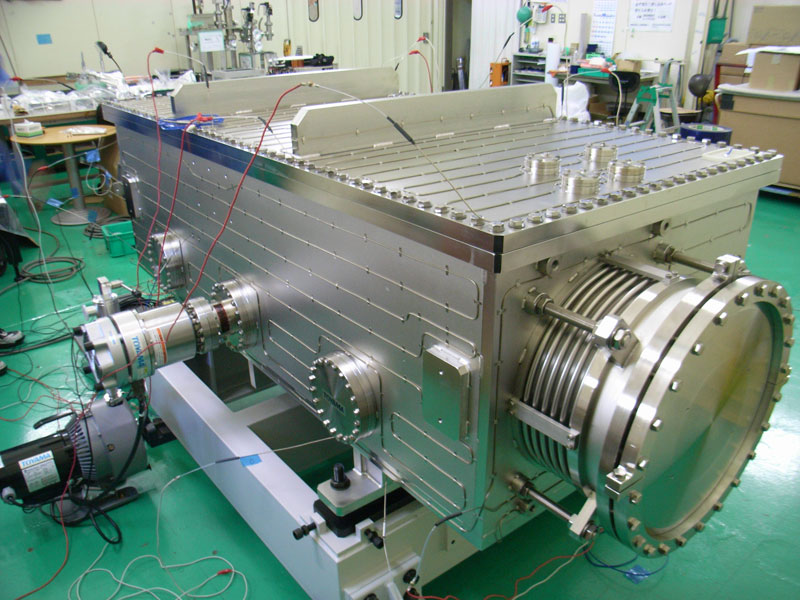

The magnet is housed in a chamber 900mm W x 2000mm L x 600mm H
Rectangular flanges are sealed using tin sheets.
