BOREAS Monochromator
Features | Specification | Photos | Drawing | 3D Model

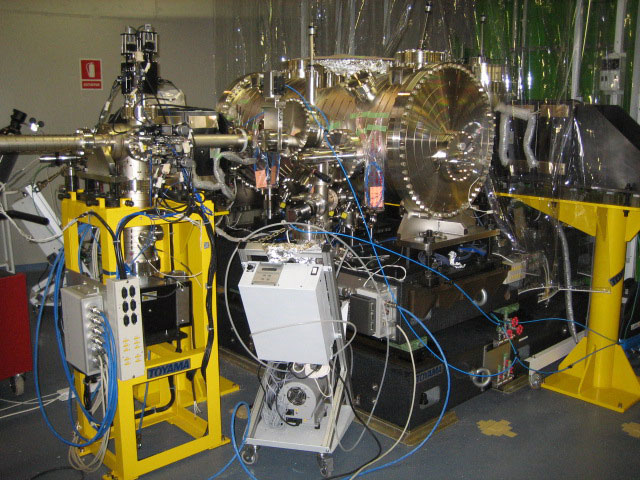

The BOREAS Monochromator during installation
The monochromator is based on the Variable Line Spacing, Plane Grating (VLS-PG) model. It can work at fixed included angles of either 175° or 177° in combination with either of the two spherical mirrors that are installed.
