Magnetic Coupling MC070/MC034 series

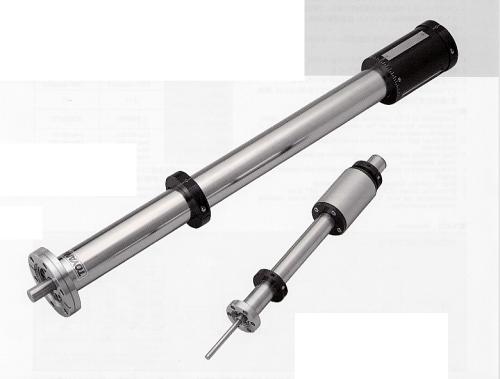

MC070/MC-250 (left)
MC034/MC-100 (right)
These transfer rod series are multi-purpose feedthroughs using a magnetic coupling system by which the sample in UHV conditions may be moved or transferred without breaking the vacuum.
Features
- Compatible to UHV conditions below 10-8 Pa (10-10 Torr) operating pressure because of the complete air seal by the use of the magnetic coupling system.
- Both linear and rotary motions available smoothly by the sliding mechanism.
- Easy travelling adjustment at any position by stop clamp and/or rotary graduation
- Firm structure to minimise the bend enabling safe transfer of the sample
- The simple construction provides excellent durability
- Evacuation flange (ICF034) attached to the "+OP" type.
- Combination use with XY Manipulator (TM Series) enabling precision positioning.
