Manufacturing a Chamber
This sequence of pictures shows the processes that one of the Septum Magnets for J-PARC goes through during manufacture.

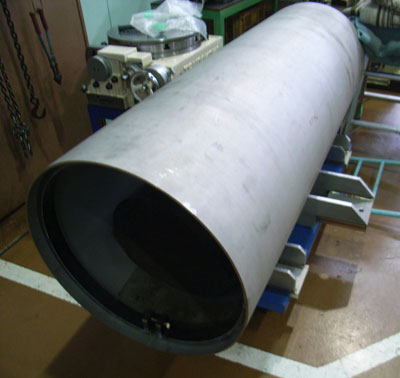

Stage 1 - Rolling the pipe

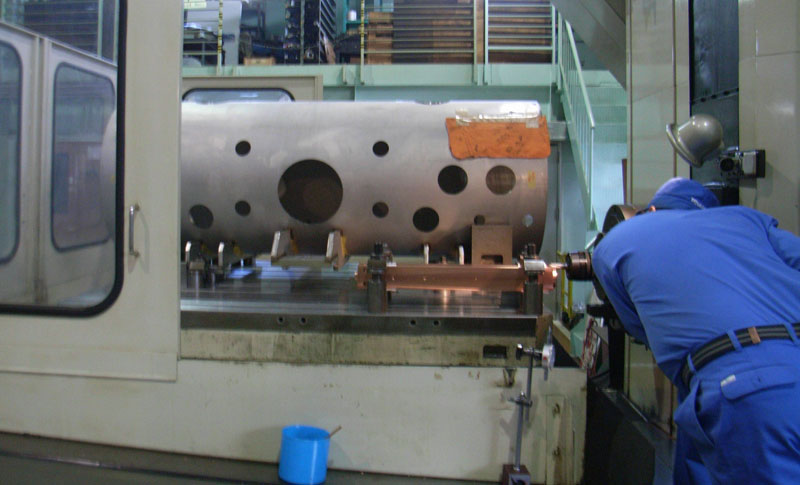

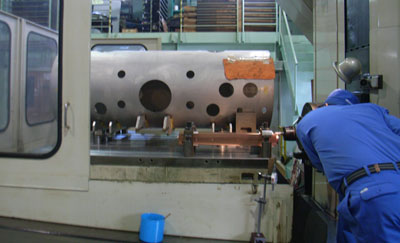

Stage 2 - NC Machining

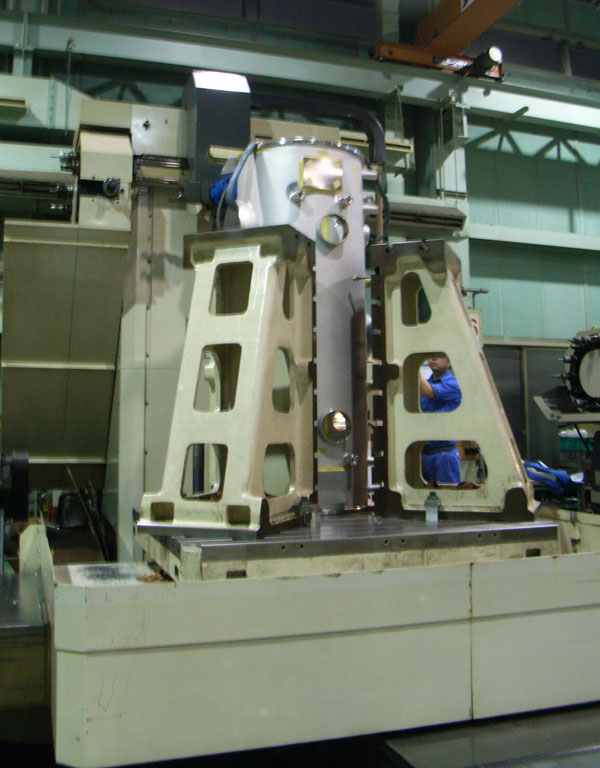

Stage 3 - Welding

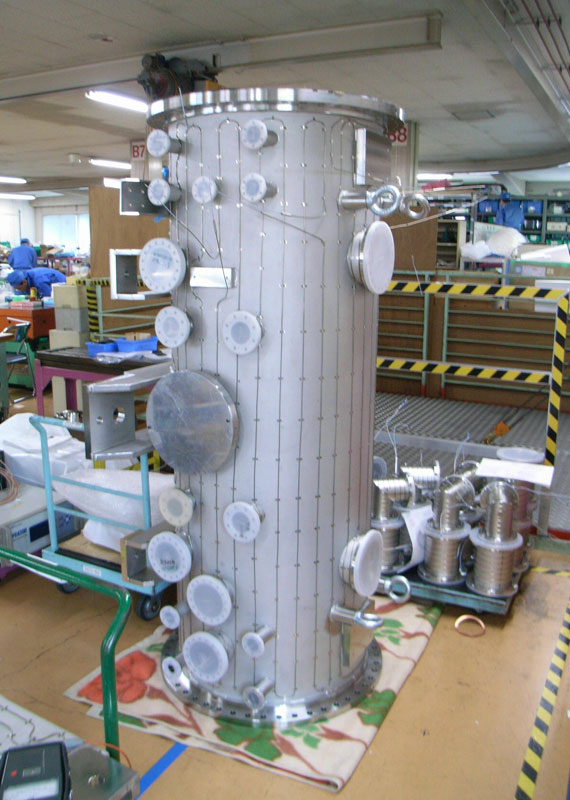

Stage 4 - Assembled

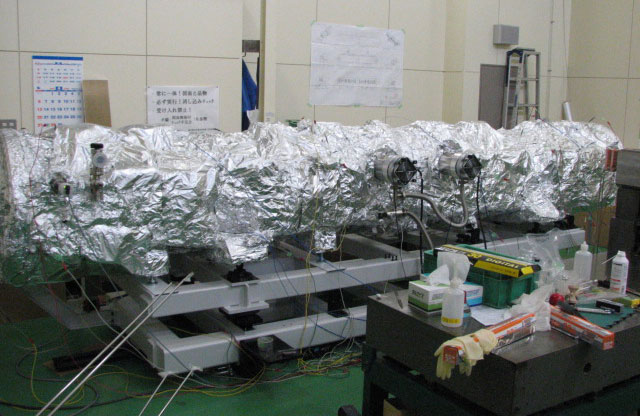

Stage 5 - Baking

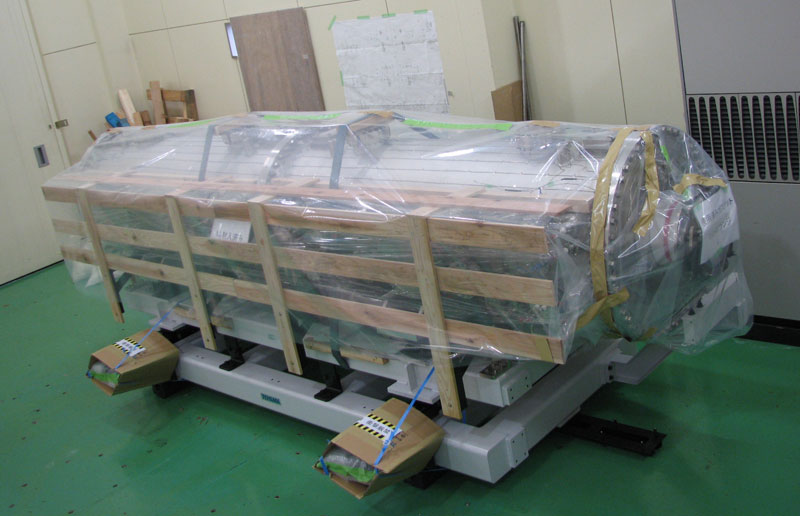

Stage 6 - Packing

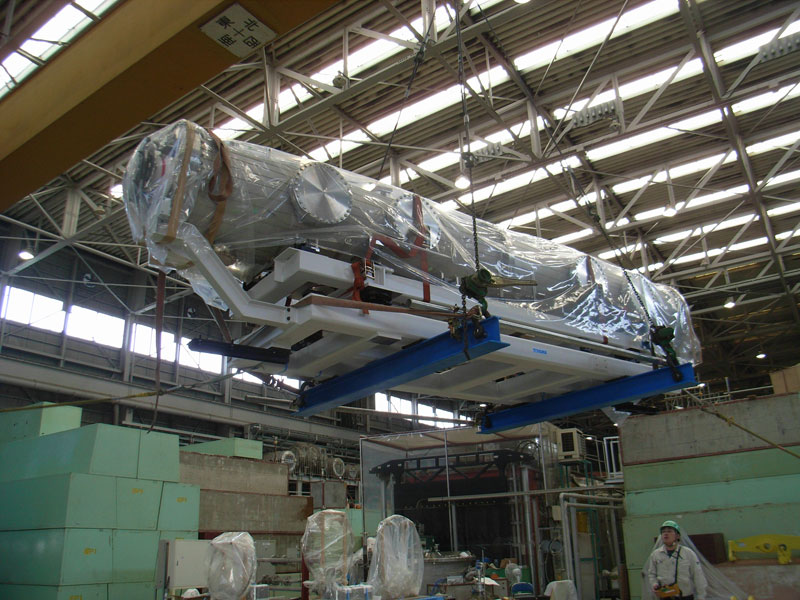

Stage 7 - Delivery
