Variable Line Spacing Plane Grating Monochromator VLSPGM
for BL-28 at KEK
Features | Specification | Design | Drawings | Photos | Control System | Delivery Record
Drawings

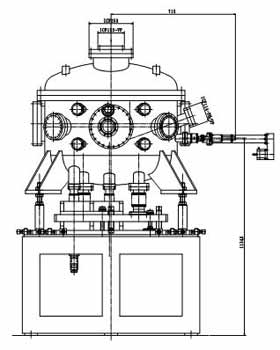

Drawing of VLSPGM chamber for BL-28
Click image to open full drawing

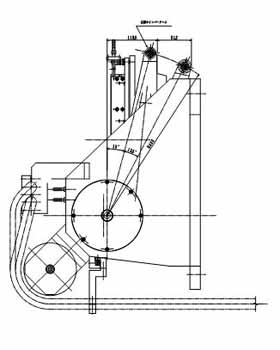

Drawing of internal mechanism of BL-28 mono
Click image to open full drawing

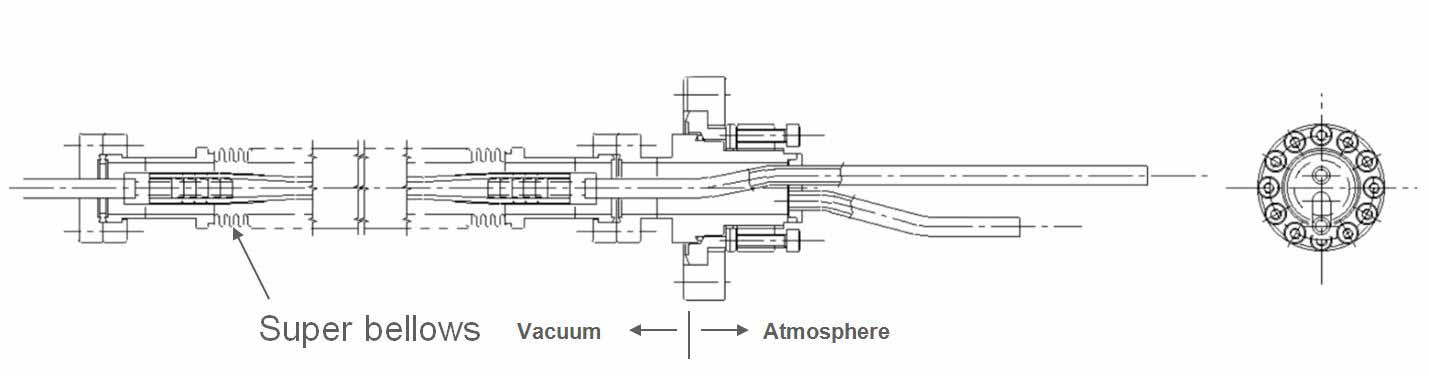

Drawing of grating cooling mechanism, using double tube water cooling
