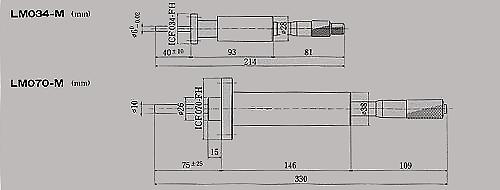

Linear Motion Drives LM034-M/LM070-M
Specifications
| Format | LM034 | LM070-M* | |||||
|---|---|---|---|---|---|---|---|
| Pressure Range | <1.3x10-11 Pa m³/sec (1x10-10 Torr L/sec) |
||||||
| Vacuum sealing method | Bellows type | ||||||
| Allowable heating temperature | 200 °C (Excluding the micrometer head) |
||||||
| Travel distance | 20mm | 50mm | |||||
| Scale positioning | 0.01mm | 0.01mm | |||||
| Flange | ICF034FH** | ICF070FH** | |||||
| Weight | 400g | 1.2Kg*** | |||||
* LM070-M is made to order. Other non-standard types can be supplied on request
** "FH" means a drilled hole type ICF flange
*** reference weight
